Flocking Booths

Flocking Booths and Extraction Systems...



Single Flocking Booth

SGSB1 - SINGLE SELF CONTAINED EXTRACTED BOOTH

  • The single booth is available as a flocking booth or as a glue spray booth.
  • Noise level - 72db @ 1m from booth face
  • External dimensions - 1190W x 1115D x 2110T
  • Opening size – 1110W x 950D x 1070T
  • Twin double fluorescent light units with spray shield film clamps
  • Variable speed 315mm extraction fan.
  • Earth connection points
  • Product hanging bar
  • Configured as a flocking booth - £995
  • Configured as an aqueous adhesive booth - £995
  • Configured as a solvent adhesive booth - phone for current pricing

(Picture shown is the single booth with paint filter unit)

Buy

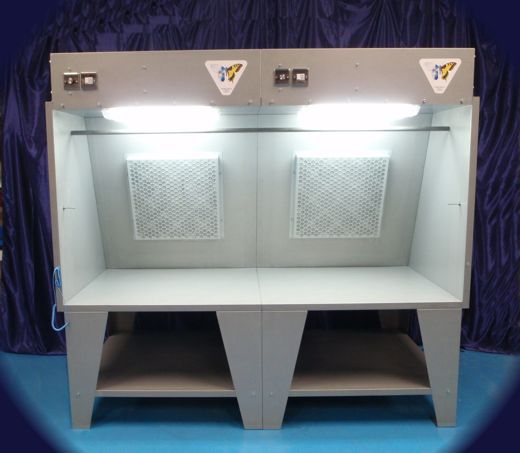

Double Flocking Booth

DFLB1 - DOUBLE SELF CONTAINED EXTRACTED BOOTH

  • The double booth is available as a flocking booth or as a glue spray booth.
  • Provides containment for free flock fibres
  • Allows recycling of excess flock fibres
  • Noise level - 72db @ 1m from booth face
  • External dimensions - 23400W x 1115D x 2110T
  • Opening size – 2220W x 950D x 1070T
  • Four double fluorescent light units with spray shield film clamps
  • Two Variable speed 315mm extraction fan.
  • Earth connection points
  • Product hanging bar
  • Configured as a flocking booth - £1995
  • Configured as an aqueous adhesive booth - £1995
  • Configured as a solvent adhesive booth - phone for current pricing

(Picture shown is the double booth with flocking filter unit)

Buy

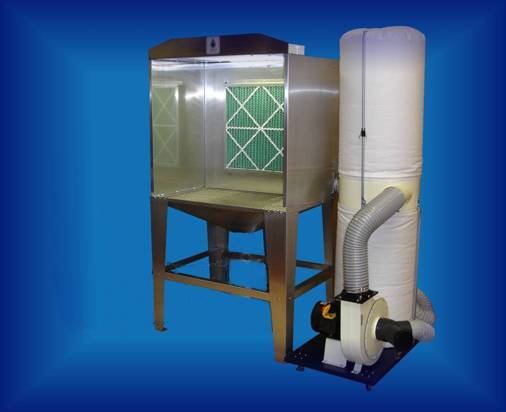

Flock Booth 1

Flocking Booth – LV1SS

Low Volume Recycling

We manufacture and supply a range of booths and extractors to accompany the flocking process. Booths are available for glue spraying, flocking and clean down operations. They are supplied in sizes to suit customer requirements.

The LV1SS flocking booth is intended for use in low to medium volume flocking operations. It allows for flock recycling and collects the majority of excess flock generated during the process of applying flock and removing the excess flock after curing.

When only low volumes of excess flock are being generated the flock is collected within the working area of the booth. Larger volumes are accommodated by the removal of one filter which then allows the flock to be collected in the external extraction system.

Features

  • Standard work area 1000mm x 600mm
    (Other sizes available on request)
  • Polycarbonate window in roof with optional lighting unit.
  • Stainless Steel construction.
  • Separate external extraction enables the unit to be tailored to suit customer requirements.
  • Work area can be cleaned down quickly.


Buy


Extract

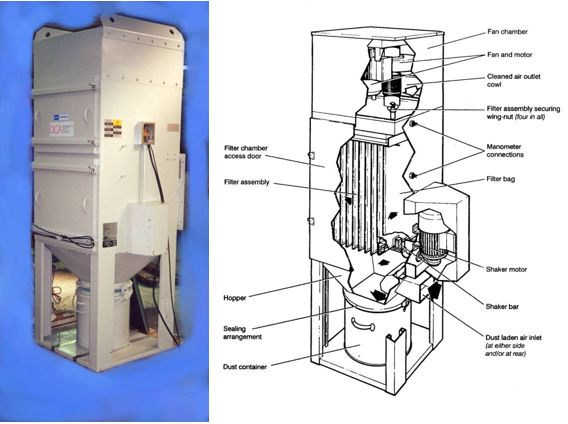

Extraction Systems

Extraction systems are available for fitting to flock chambers, conveyor systems and automatic lines, offering reclamation and recycling of excess flock.


Buy
