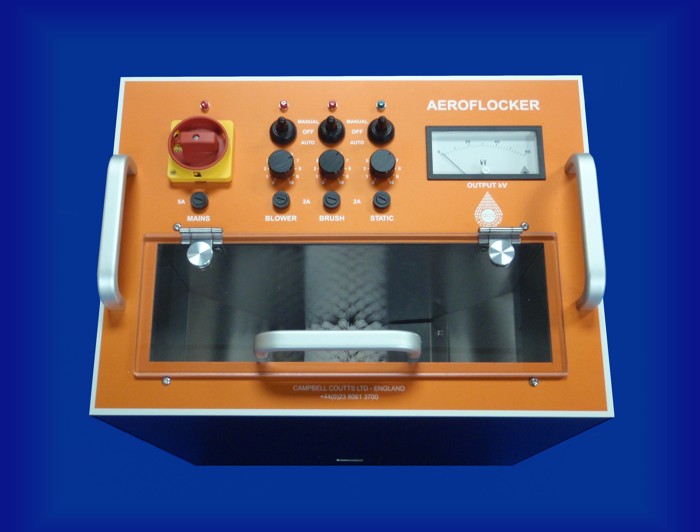

Aeroflocker™ - portable blown flock spraying equipment

Industrial Quality Blown Electrostatic Flock Spray System - £3,250 + vat

The flocking of objects which have deep recesses or sharp angles has always created problems for flock coaters. This is the result of the Faraday Cage effect where the electrostatically charged fibres are attracted to the nearest earthed surface which stops them reaching into cavities and corners. To overcome this problem a pneumatic or blown electrostatic flocking system is required. The Aeroflocker™ is a blown electrostatic system that delivers an easily adjustable steady stream of charged flock. It is suitable for flocking into profiles and pockets in addition to external surfaces. The standard system comes complete and ready to go. The process parameters can be set very quickly. An optional hand held hopper for electrostatic only applications is available.





Features:

  • The system consists of the main process unit and applicator gun.
  • The main process unit is self contained portable mains operated unit.
  • The flock delivery unit sieves the flock before delivering it to the gun via the delivery hose.
  • The flock hopper holds up to 1kg of flock, but successfully operates with as little as 100gm of flock.
  • The high voltage generator has a fully adjustable output of up to 60kV.
  • The generator will supply up to 350uA ouput.
  • Charging voltage meter shows current charge setting.
  • Independent controls allow the flock delivery, air flow and electrostatic charge to be adjusted to suit the application and required work rate.
  • The main unit allows non blown hand held applicators or flock chambers to be connected to the generator.
  • A variety of applicator pots and meshes are available.



Equipment Specification

GENERATOR - Mains input voltage supply: (Specify at point of order). 240 vac / 0.5A (UK) 50 Hz or 110 vac / 1A (USA) 60 Hz

FUSE RATING Control Panel - 2A 20mm (slow blow / anti surge type)

OUTPUT VOLTAGE - 60Kv d.c. (Max)

OUTPUT CURRENT (A) - 350 uA (Max)

OUTPUT VOLTAGE POLARITY - Negative (-)

REMOTE SWITCHING CONTROL - Via footswitch or handswitch on flocking gun



MAIN CABINET

CABINET DIMENSIONS - 56cm(H) x 41cm(W) x 30cm(D)

(All dimensions are approximate) - (22”) x (16”) x (12”)

CABINET WEIGHT - 25 Kg

CABINET MATERIAL - Powder Coated Mild Steel



FLOCK HOPPER

MAXIMUM FLOCK CAPACITY - 1000gm

MINIMUM OPERATIONAL CAPACITY - 100gm

MAXIMUM FLOCK LENGTH - 2mm

MESH SIZES AVAILABLE - 2mm, 3mm



FLOCK APPLICATORS

BLOWN GUN - Hand held gun with trigger for blown hopper fed application

ELECTROSTATIC ONLY - A variety of hand held electrostatic only hoppers are available
