Fabricoat conveyor units

An ideal method for flock coating 2- dimensional objects, such as pictures, mats, cutlery trays, tables, in volume.

Conveyor systems which consist of the conveyor itself, an overhead flock hopper/dispenser, the high voltage generator and the control system are usually made to order and customised to suit the particular customer application.

Examples of conveyor and hopper are shown below;

Example of a Fabricoat™ conveyor unit used in flocking processes

Specification A

CONVEYOR LENGTH - 3750mm
BELT WIDTH - 1000mm
MAXIMUM OBJECT SIZE - 900mm

The adhesive coated objects are placed on the conveyor and are flocked automatically by a special flock hopper as they pass underneath.

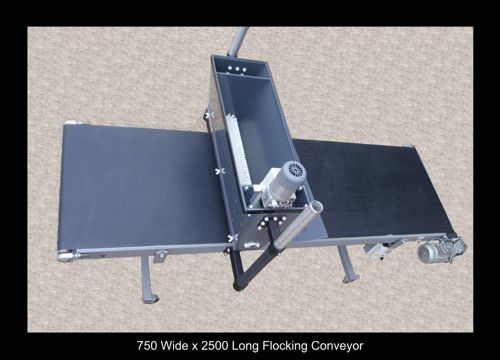

Specification

CONVEYOR LENGTH - 2500mm
BELT WIDTH - 750mm
MAXIMUM OBJECT SIZE - 700mm

These are modular systems so that additional flock hoppers and a drying oven can be added if increased production speeds are required.

Modular flocking system using flock hoppers

Specification B

CONVEYOR LENGTH - 1500mm
BELT WIDTH - 300mm
MAXIMUM OBJECT SIZE - 200mm

These are modular systems so that additional flock hoppers and a drying oven can be added if increased production speeds are required.

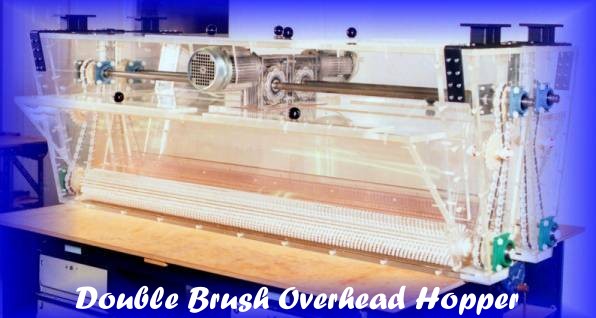

Double brush overhead hopper as part of a modular flocking process

DOUBLE BRUSH HOPPER

FLOCKING WIDTH - 2000mm

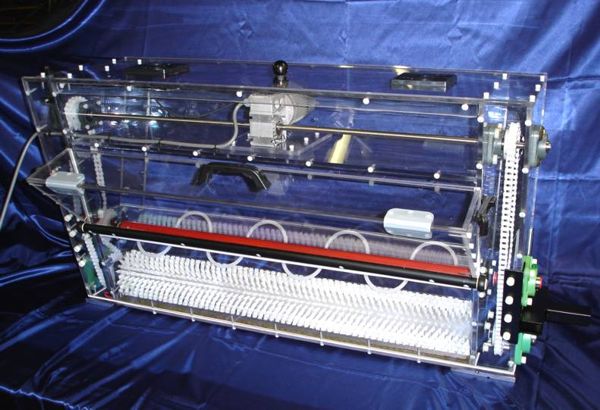

SINGLE BRUSH HOPPER

FLOCKING WIDTH - 1000mm

MINI SINGLE BRUSH HOPPER

FLOCKING WIDTH - 200mm
